Assembler

Intellibus has DIN mounting controls solution called the Assembler range.  The Assembler range is ideal for smaller or where it is necessary to mount into existing electrical distribution boards.  Assembler is the most economical in the Intellibus range.

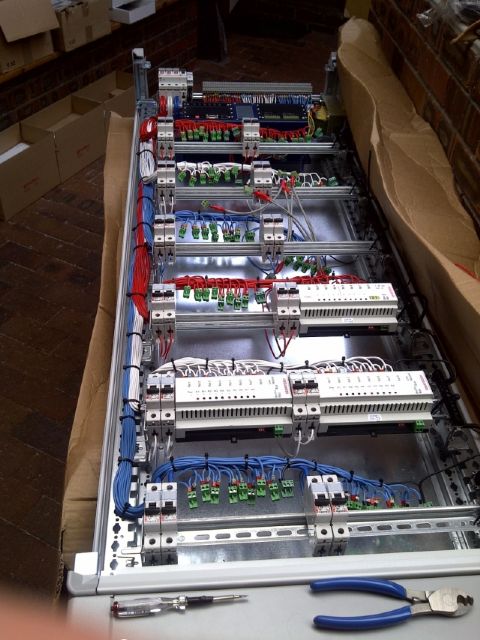

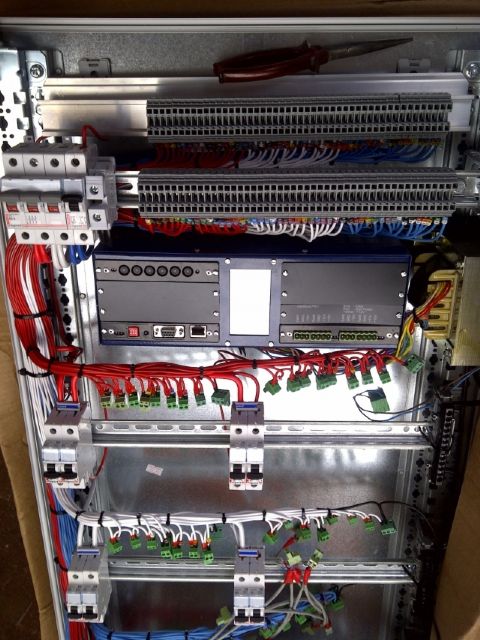

As one of our services, we do full board designs as well as contruction all in-house.  We also will provide assistance and training to the contractors to ensure ease of installation.

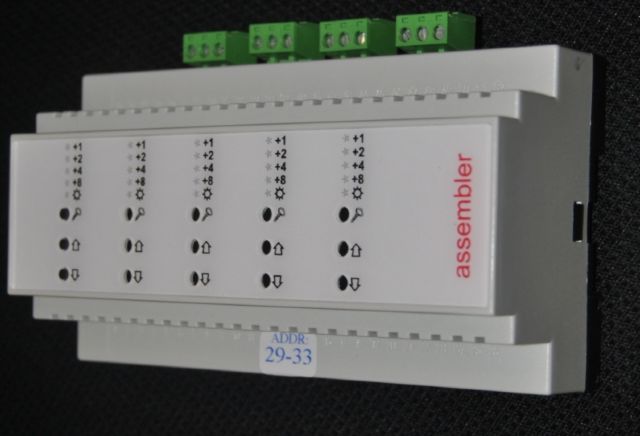

IBA BSE: – The assembler Base unit accepts up to 5 Assembler dimmer modules.  Physical dimensions - 9 DIN modules.

IBA DSI: – DSI to Intellibus dimmer. Controls up to 15 DSI Ballasts.

IBA 1-10V: – 1-10 volt dimmer. Suitable for dimming 1-10vfluorescent ballasts and 1-10v LED drivers. Maximum of 15 ballasts or 1A.

 IBA 2AD: – Leading Edge 400 watt dimmer.

IBA 4AD:  – Leading Edge 800 watt dimmer.

IBA 2LED: - 1 Channel 240VA LED dimmer card

BIBA PR10A: – Potential free 4 way relay board. Maximum 10A AC or 2A DC per channel.Physical dimension – 9 DIN modules.

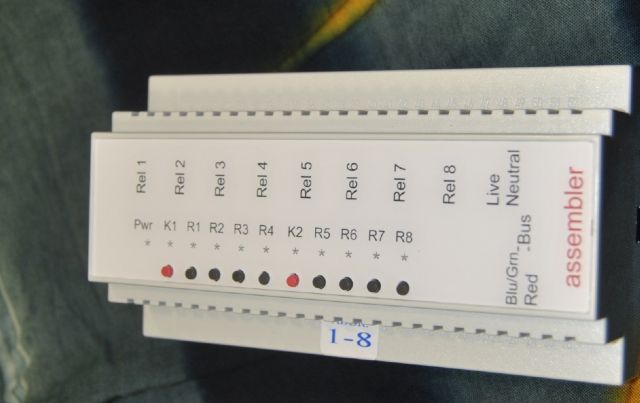

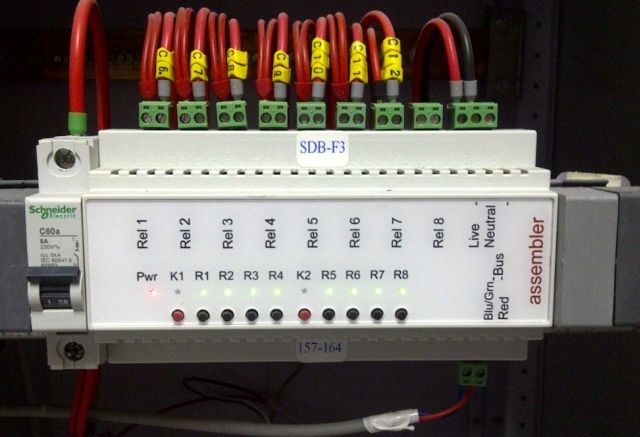

BIBA PR10A8: – Potential free 8 way relay board. Maximum 10A AC or 2A DC per channel.Physical dimension – 9 DIN modules.

BIBA PR10AC: - Potential free relay specifically designed to control curtains, blinds or screens.  The device has an electric interlock preventing the motor from being sent in both directions simultaneously. Two outputs.  Dimensions – 9 DIN modules.

BIBA PR10A8C: - Potential free relay specifically designed to control curtains, blinds or screens.  The device has an electric interlock preventing the motor from being sent in both directions simultaneously. Four outputs.  Dimensions – 9 DIN modules.

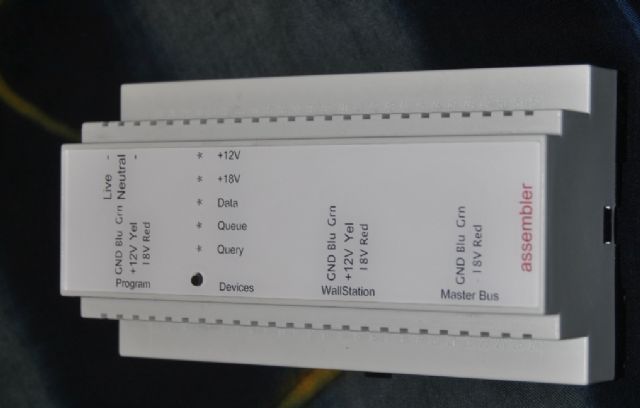

IBA PSU16MQ: - Power Supply for up 32 devices and up to 16 wall stations.

IBA PSU 12v: - 12 Volt auxiliary Power Supply.

IBA APPLE TCP: - TCP/IP Intellibus 256 Interface web embedded server and Apple interface.

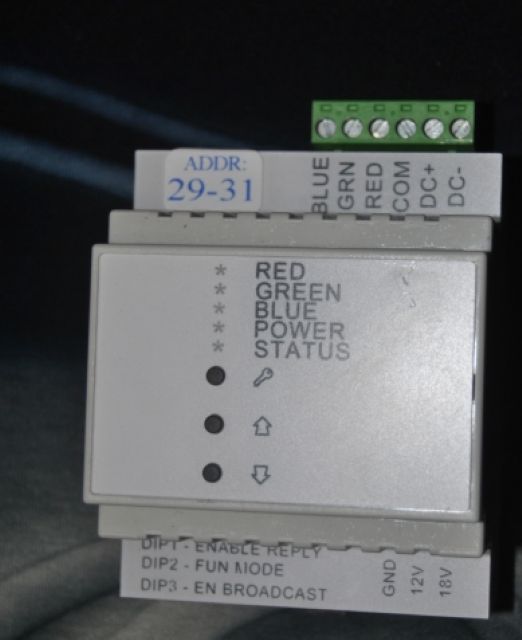

IB RGB3: - 3 Channel LED Driver
