Wall Box Dimmers

All dimmers carry a 3-year “carry in” replacement warranty.  Goods are only guaranteed if they are stored, installed and operated under the conditions for which they were designed.  The goods must be returned to us, carriage paid, for inspection at our own premises for either repair or replacement.

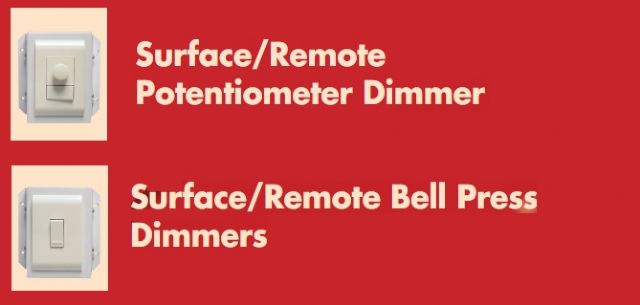

Surface/Remote Bell Press or Potentiometer Dimmer

Operating voltage 230V – comes in 2Kw, 3Kw and 4Kw modules, please see below specs:

2KW – 2000 watt resistive, 1600VA inductive

3KW – 3000 watt resistive, 2400VA inductive

4KW – 4000 watt resistive, 3000VA inductive

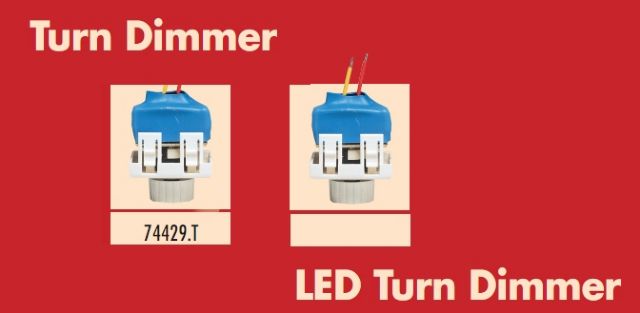

Turn Dimmers

LED Turn dimmer - Turn dimmer, 2 module Legrand Arteor. 90 watt maximum and 6 watt minimum LED Load with switched potentiometer. Operating voltage 230V.  The dimmer has an adjustable low end trim so that the LED lamps do no flicker.

Turn Dimmer – Turn dimmer, 2 module Legrand Arteor. 600 watt resistive, 500VA inductive loads (Minimum load resistive is 40 watts, 50VA inductive) with a switched potentiometer. Operating voltage 230V.

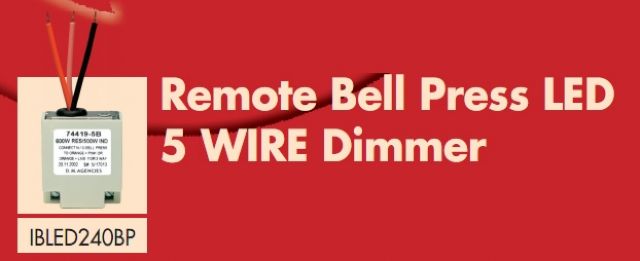

Remote Bell Press LED 5 wire Dimmer

Remote electronic 5 wire Bell Press dimmer, 240 watt. (Minimum load 6 watt) Operating voltage 230V

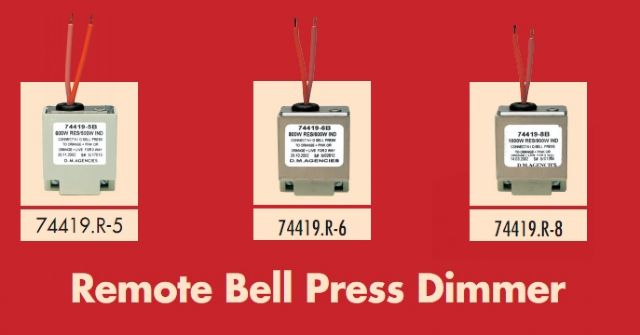

Remote Bell Press Dimmer

R2 Remote Bell Press Dimmer – Remote touch dimmer, specifically for low wattage loads such as dimmable LED or CFL lamps. 240 watt resistive , capacitive or inductive.(Minimum load resistive 18 watt). Operating voltage 230V.

R5 Remote Bell Press Dimmer – Remote touch dimmer, 600 watt resistive 500VA inductive. (Minimum load resistive 40 watt, inductive 50VA). Operating voltage 230V.

R6 Remote Bell Press Dimmer – Remote touch dimmer, 800 watt resistive 600VA inductive. (Minimum load resistive 60 watt, inductive 100VA). Operating voltage 230V.Surface/Remote bell press dimmers

R8 Remote Bell Press Dimmer – Remote touch dimmer, 1000 watt resistive 800VA inductive. (Minimum load resistive 60 watt, inductive 100VA). Operating voltage 230V.Surface/Remote bell press dimmers

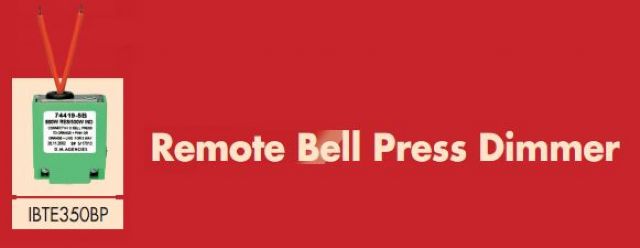

Remote Bell Press Dimmer - 350 VA trailing edge dimmer for Electronic transformers and certain LED loads.

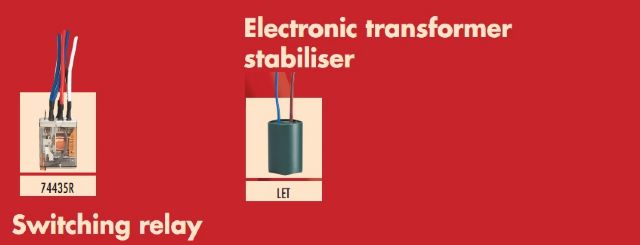

Accessories

Electronic transformer stabiliser - Electronic low voltage transformer stabilizer suitable for 4 electronic transformers.  Prevents flicker from occurring

Switching relay - 18 amp relay for boosting thermostat capacity for loads up to 18 amps
